High performance, cutting-edge technology that interacts with humans and respect for the environment.
With its 6 registered patents, N1clave was created to give innovative answers to today’s challenges and the needs of professionals and their teams.
A revolutionary concept in 5 versions: an unprecedented load-time ratio in the sterilization cycle, advanced connectivity and user experience and operation using just tap water, which you can either reuse at the end of the cycle or drain without contaminating the environment.

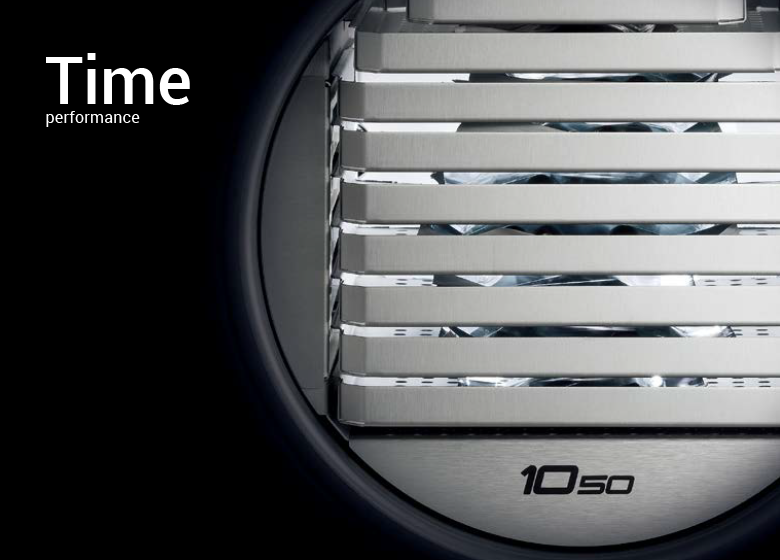

  • Time is the most precious resource, both at work and in our private lives. This is the reason why N1clave ensures superior performance,thanks to patented innovative technologies, which increase the cycle speed and dry the instruments perfectly.

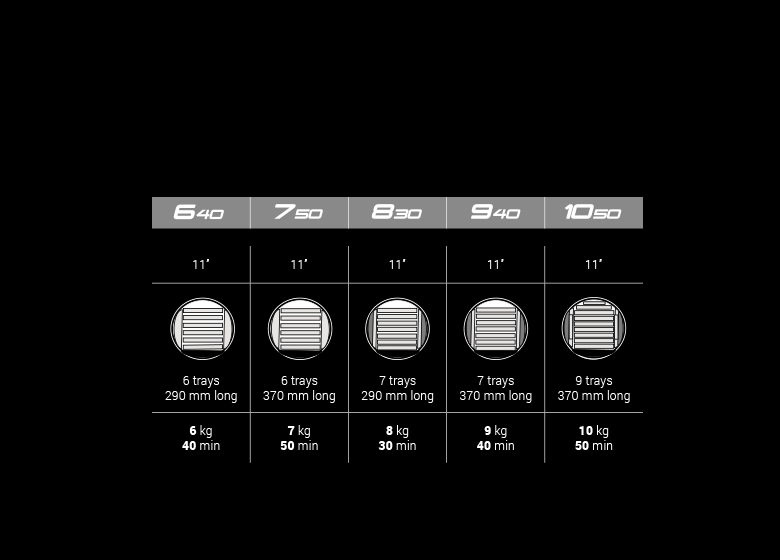

    Its extraordinary efficiency is perfectly expressed in the ratio between the load capacity of its chamber and the time required to complete a cycle: this ratio allows to see at a glance the difference in performance between N1clave and other autoclaves.
    For example, N1clave 8 30 can sterilise an 8 kg load in just 30 minutes (a performance index of 3.75 minutes per kilo) with reduced power consumption. No other autoclave on the market claims to match this performance.

    Time measured for B cycle Universal 134 with solid load, single wrapped.

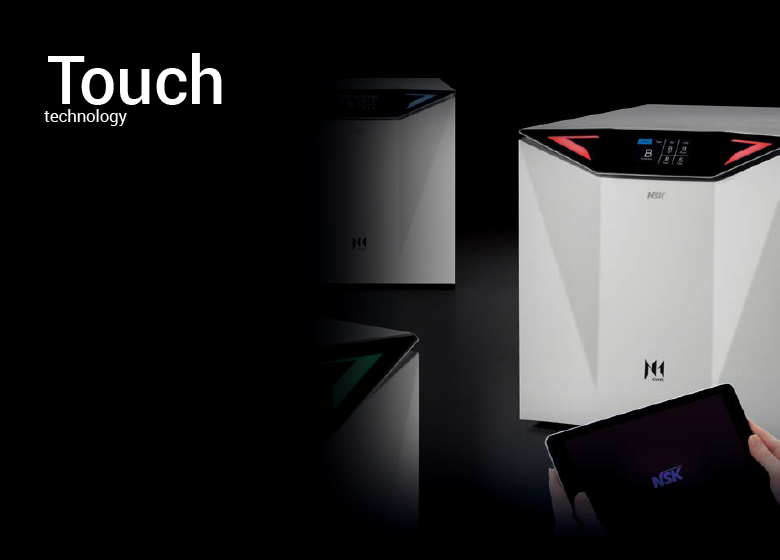

  • A simple touch is all you need to connect to the future of sterilization. N1clave is the first autoclave that is perfectly in sync with contemporary languages and meets the need to manage each operation and stage in a precise, intuitive and comfortable way.
    The latest generation connectivity allows you to manage the data of the sterilization cycles securely and receive precise and timely assistance,
    the innovative Light Signature accompanies every step and warns about any risk, the elegant and immediate graphic interface allows to use the menus in a simple and innovative way.

  • Touch screen Positioned at the center of the innovative cockpit and characterized by the ergonomic inclination, the touch screen offers an extremely gratifying work experience.

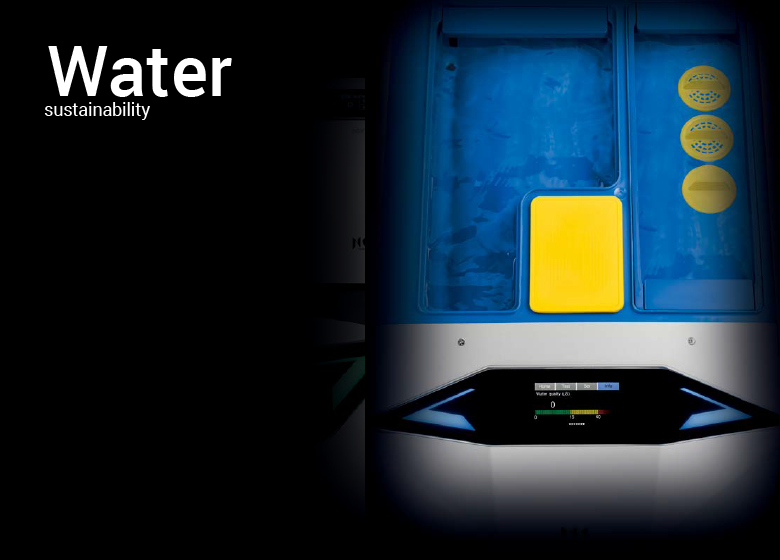

  • N1clave is the first autoclave that works with tap water.
    That alone tells you how revolutionary it is. But there is more.
    An extraordinary innovation, due to the Water PerpetualTM system, with its special patented filters positioned inside the autoclave.
    In this way, N1clave increases comfort in sterilization management and takes care of the environment and a precious resource such as water. For environmental sustainability in technology is today’s true innovation.

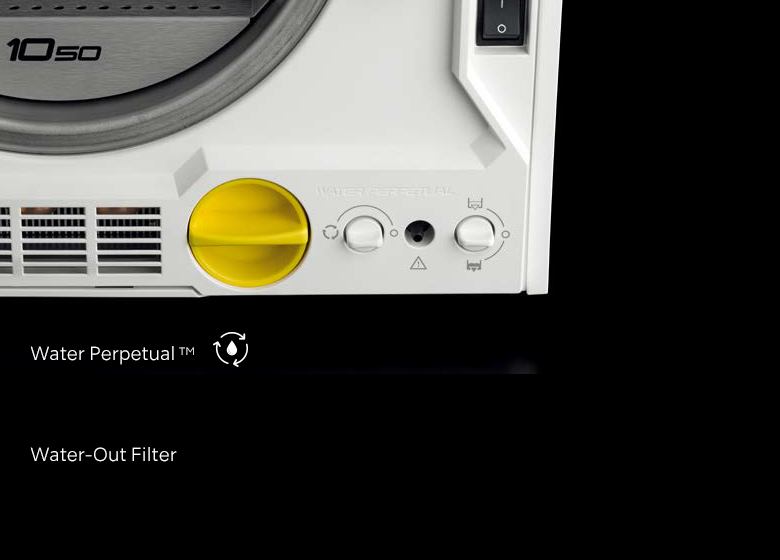

  • The control panel of the Wate PerpetualTM system, located on the front of the autoclave, includes the water drain tap, the selector for the activation of water recycling and the outlet tap.

    The Water-Out Filter is positioned so as to be easily accessible.

Technology & Function

N1clave

N1clave

640 750 830 940 1050
Model Name N1clave 640 N1clave 750 N1clave 830 N1clave 940 N1clave 1050
Order Code Y1004214 Y1004215 Y1004216 Y1004217 Y1004218
CHAMBER DIMENSIONS 11"x350 mm 11"x450 mm 11"x350 mm 11"x450 mm 11"x450 mm
LOAD CAPACITY(MAX) 6 kg 7 kg 8 kg 9 kg 10 kg
TRAYS 6trays 212×290 mm 6trays 212×370 mm 7trays 212×290 mm 7trays 212×370 mm 7trays 212×370 mm
1trays 194×370 mm
1trays 147×370 mm
CYCLE TOTAL TIMING PERFORMANCE*
(DRYING INCLUDED)		 40 min 50 min 30 min 40 min 50 min
COCKPIT COLOUR glossy white glossy white glossy black glossy black glossy black
LIGHT SIGNATURE - - ✓ ✓ ✓
WATER PERPETUALTM ✓ ✓ ✓ ✓ ✓
STEAM GENERATOR ✓ ✓ ✓ ✓ ✓
ZEOLITE - - ✓ ✓ ✓
BOOSTERS + COOLING - - ✓ ✓ ✓
USB ✓ ✓ ✓ ✓ ✓
LAN ✓ ✓ ✓ ✓ ✓
WEB CLIENT** ✓ ✓ ✓ ✓ ✓
* approx. time measured for B cycle Universal 134 with solid load, single wrapped.
** terms and conditions may vary from country to country.
PROGRAM WRAPPING ESPECIALLY
SUITABLE FOR		 STERILIZATION FOR 640 750 830 940 1050
BUniversal Single and multiple
wrapped		 Mixed loads; long,
narrow bore hollow bodies		 134℃
Sterilization time
5,5 min		 OPERATING TIME* 30-40 min 40-50 min 20-30 min 30-40 min 40-50 min
DRYING 10 min 10 min 10 min 10 min 10 min
LOAD(MAX) 6 kg 7 kg 8 kg 9 kg 10 kg
B121 Single and multiple
wrapped		 Mixed loads;
larger quantities of textiles;
thermo-instable goods
(e.g. plastic, rubber goods)		 121℃
Sterilization time
20,5 min		 OPERATING TIME* 42-52 min 52-62 min 32-42 min 42-52 min 52-62 min
DRYING 15 min 15 min 15 min 15 min 15 min
LOAD(MAX) 6 kg 7 kg 8 kg 9 kg 10 kg
LOAD TEXTILE(MAX) 1,5 kg 2 kg 2,5 kg 3 kg 3,5 kg
BPrion Single and multiple
wrapped		 Instruments where
a danger of infection
by pathologically modified
proteins is suspected
(e.g. Creutzfeld-Jacob-Disease, BSE)		 134℃
Sterilization time
20,5 min		 OPERATING TIME* 45-55 min 55-65 min 35-45 min 45-55 min 55-65 min
DRYING 15 min 15 min 15 min 15 min 15 min
LOAD(MAX) 6 kg 7 kg 8 kg 9 kg 10 kg
LOAD TEXTILE(MAX) 1,5 kg 2 kg 2,5 kg 3 kg 3,5 kg
BFast Single wrapped
and unwrapped instruments
(no textiles)		 Narrow bore
hollow bodied instruments		 134℃
Sterilization time
3,5 min		 OPERATING TIME* 20-25 min 25-30 min 15-20 min 25-30 min 28-32 min
DRYING 6 min 6 min 6 min 6 min 6 min
LOAD(MAX) 1 kg 1,2 kg 2 kg 2,5 kg 3 kg
SFast Only unwrapped
(no textiles)		 Simple solid
instruments; transmission
instruments;
simple hollow bodies		 134℃
Sterilization time
3,5 min		 OPERATING TIME* 15-20 min 20-25 min 13-18 min 18-23 min 20-25 min
DRYING 4 min 4 min 4 min 4 min 4 min
LOAD(MAX) 1 kg 1,2 kg 2 kg 2,5 kg 3 kg
AUXILIARY PROGRAM VACUUM TEST BOWIE & DICK TEST
USE/FUNCTION For measuring leak rate, a test for dry and cold device (test without load) Steam penetration test with special test package

* The cycle operating time is variable and depends on the load and the installation conditions.
